# Container Registries

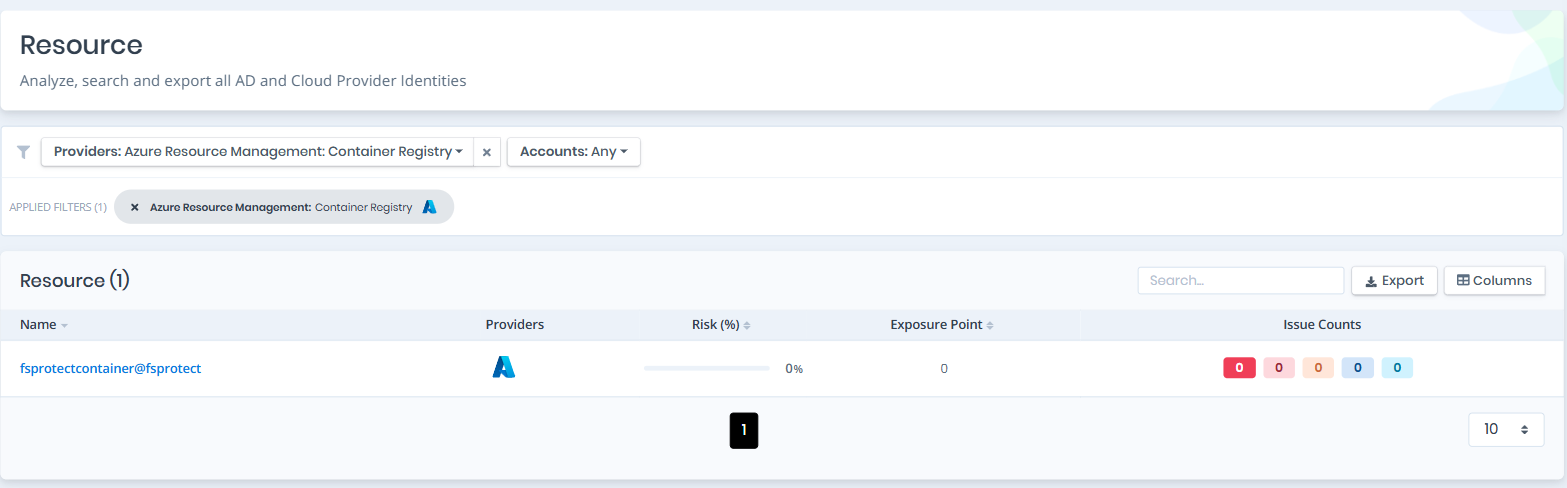

The `Container Registries` page provides a list of enumerated container registries in Azure. The list contains the `Name`, `Risk (%)`, `Exposure Point` and `Issue Counts`.

<figure><img src="https://3408039743-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FObpV44hoVkNmo5bFuVVL%2Fuploads%2Fgit-blob-f133ad1eff3336b88f03173d7bea6963d4a8b5db%2FRegistry_Containers_list.PNG?alt=media" alt=""><figcaption></figcaption></figure>

#### Container Registries Details

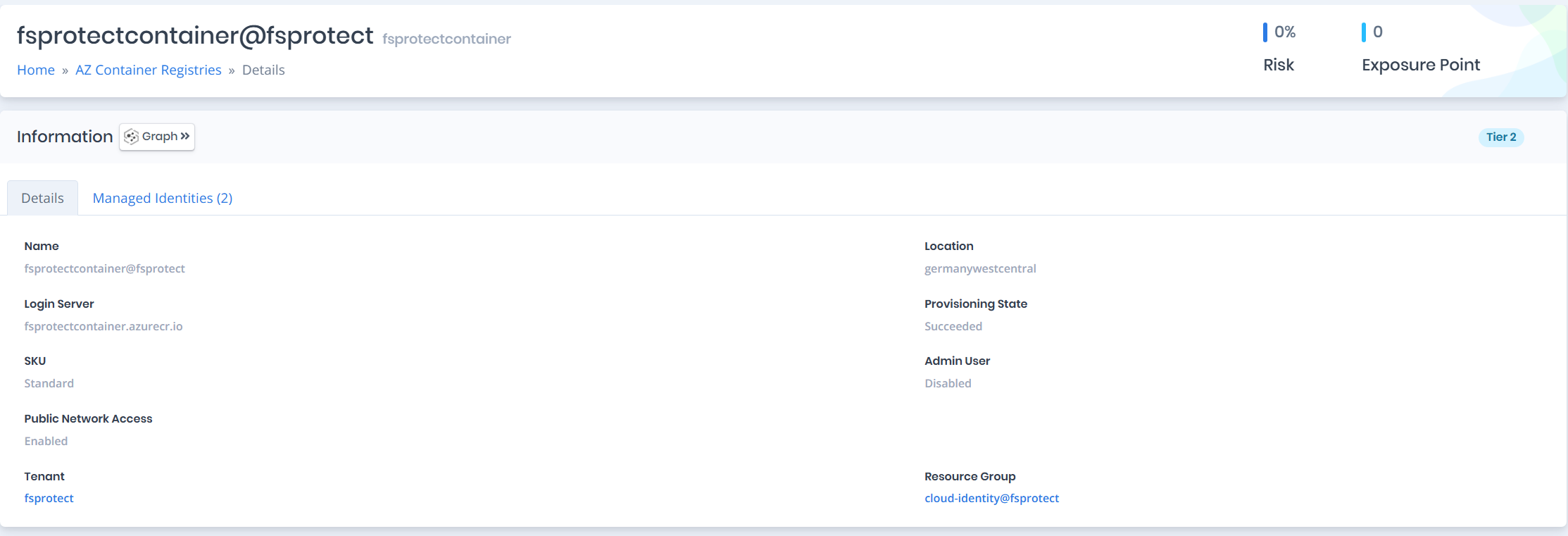

Details page contains the `Risk Score` of the container registry, `Exposure Point` and `Information` panes.

> Info You can analyze objects in the `Graph module` by clicking the `Visualize` button on the upper left side of the `Information Pane`.

<figure><img src="https://3408039743-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FObpV44hoVkNmo5bFuVVL%2Fuploads%2Fgit-blob-67de0cb7dd81c5c19606dc6e31463b89c1c8596e%2FRegistry_Containers_details.PNG?alt=media" alt=""><figcaption></figcaption></figure>

#### Information

`Information Pane` contains `Details` and `Managed Identities`.

#### Details

Details tab contains attributes below about the AZ container registry.

| Attribute             | Description                                                          |
| --------------------- | -------------------------------------------------------------------- |
| Name                  | The display name of the container registry with tenant suffix        |
| Location              | The Azure region where the container registry is deployed            |
| Login Server          | The URL of the registry login server (e.g., myregistry.azurecr.io)   |
| Provisioning State    | The provisioning state of the container registry (e.g., Succeeded)   |
| SKU                   | The SKU of the container registry (e.g., Basic, Standard, Premium)   |
| Admin User            | Indicates whether the admin user account is enabled for the registry |
| Public Network Access | Indicates whether public network access is enabled or disabled       |
| Tenant                | The tenant the container registry belongs to                         |
| Resource Group        | The resource group the container registry is associated with         |

#### Managed Identities

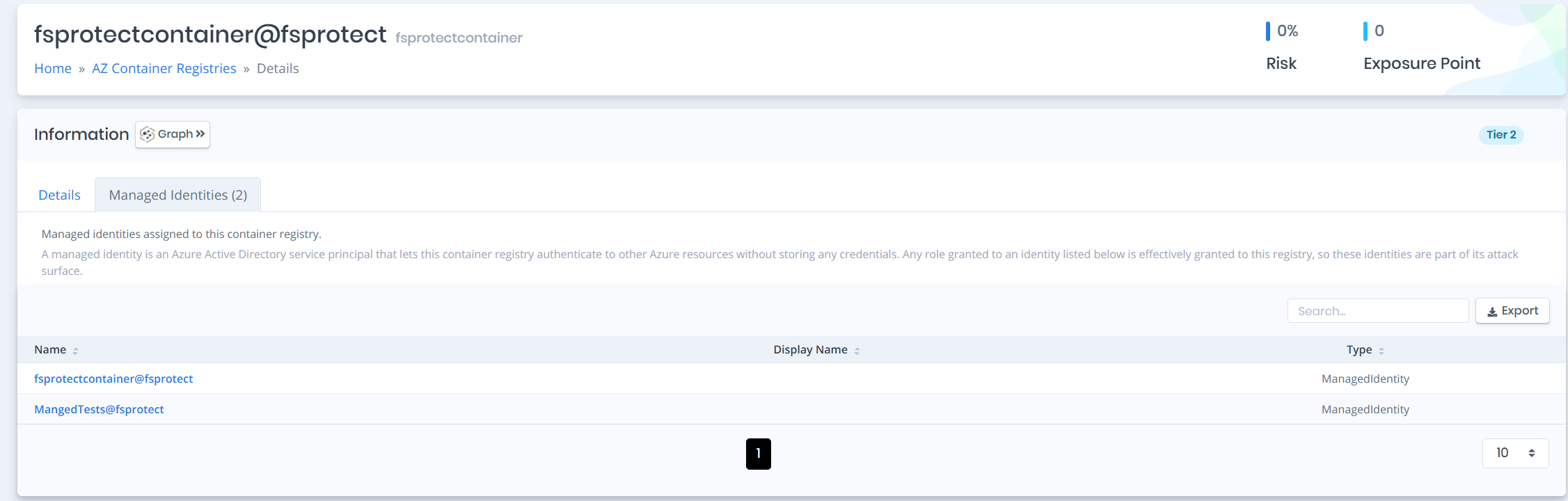

Managed Identities tab lists the managed identities (service principals) assigned to the container registry.

<figure><img src="https://3408039743-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FObpV44hoVkNmo5bFuVVL%2Fuploads%2Fgit-blob-966e27b710dfc55ba07231cdaf03f202c1ab1639%2FRegistry_Containers_MI_tab.PNG?alt=media" alt=""><figcaption></figcaption></figure>
