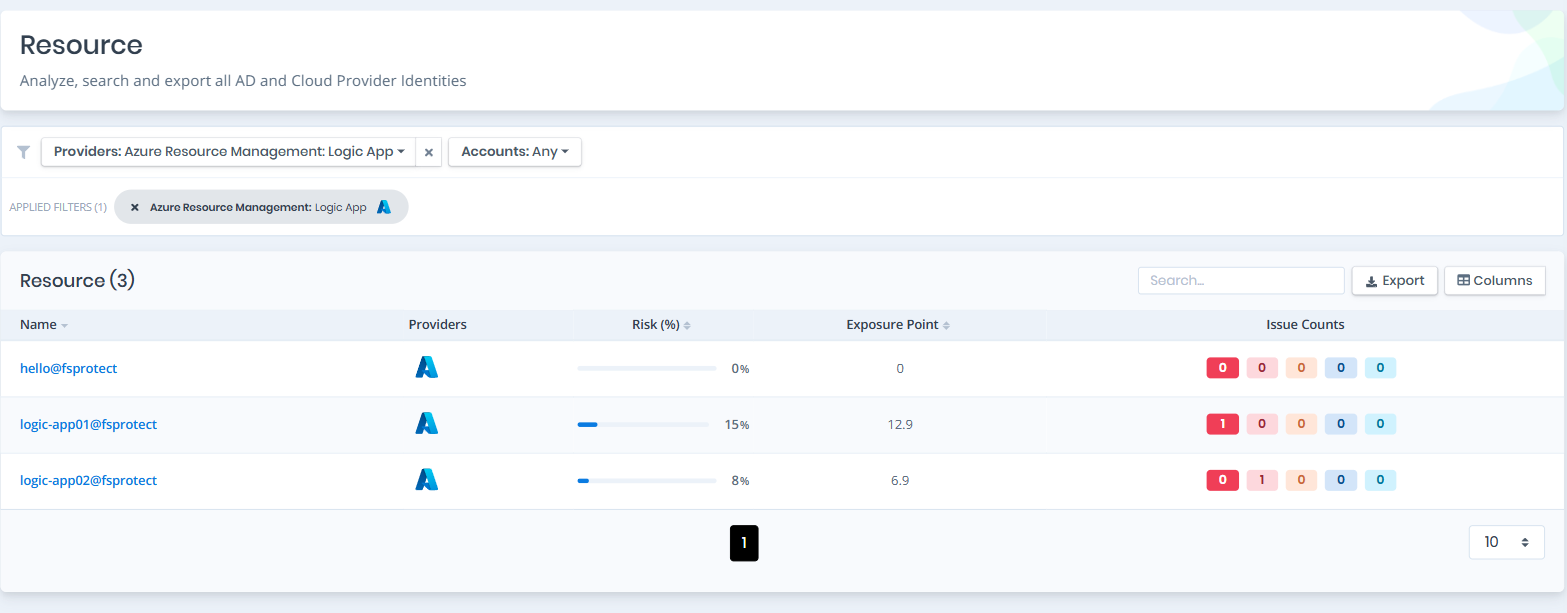

Open Unified Identities › Resources, filter Providers to Azure Resource Management › Logic App, then select a row to open its details.
Logic Apps

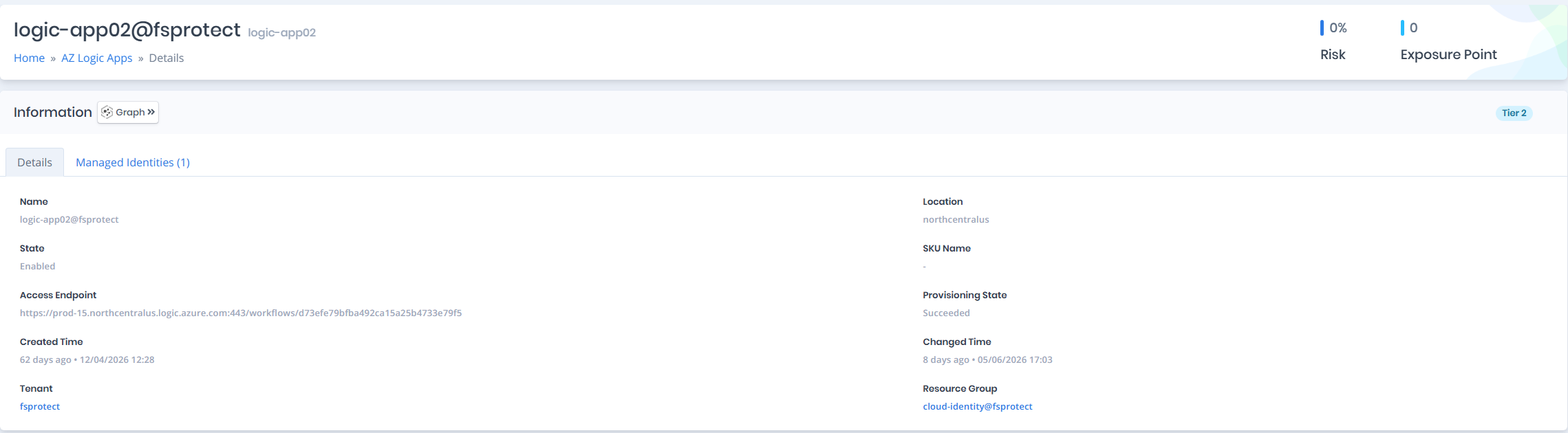

Logic Apps Details
Details page contains the Risk and Exposure Point of the logic app and the Information pane.
You can analyze the object in the Graph by clicking the Graph » button next to the Information title.
Logic Apps Details
Information
Information Pane contains Details and Managed Identities tabs.
A Tier 0 or Tier 2 badge on the right of the Information title shows the tier of the logic app.
Details
Details tab contains attributes below about the logic app.
| Attribute | Description |
|---|---|
| Name | The display name of the logic app with tenant suffix |
| Location | The Azure region where the logic app is deployed |
| State | The current state of the logic app (e.g., Enabled, Disabled) |
| SKU Name | The SKU name of the logic app (e.g., Standard, Consumption) |
| Access Endpoint | The access endpoint URL of the logic app |
| Provisioning State | The provisioning state of the logic app (e.g., Succeeded) |
| Created Time | The date and time when the logic app was created |
| Changed Time | The date and time when the logic app was last changed |
| Tenant | The tenant the logic app belongs to |
| Resource Group | The resource group the logic app is associated with |
Runtime
When runtime configuration is available, the following attributes are shown in a separate Runtime section.
| Attribute | Description |
|---|---|
| Kind | The kind of logic app (e.g., Stateful, Stateless) |
| Workflow Version | The workflow definition version |
| Integration Service Environment ID | The resource ID of the Integration Service Environment, if the logic app is deployed into an ISE |

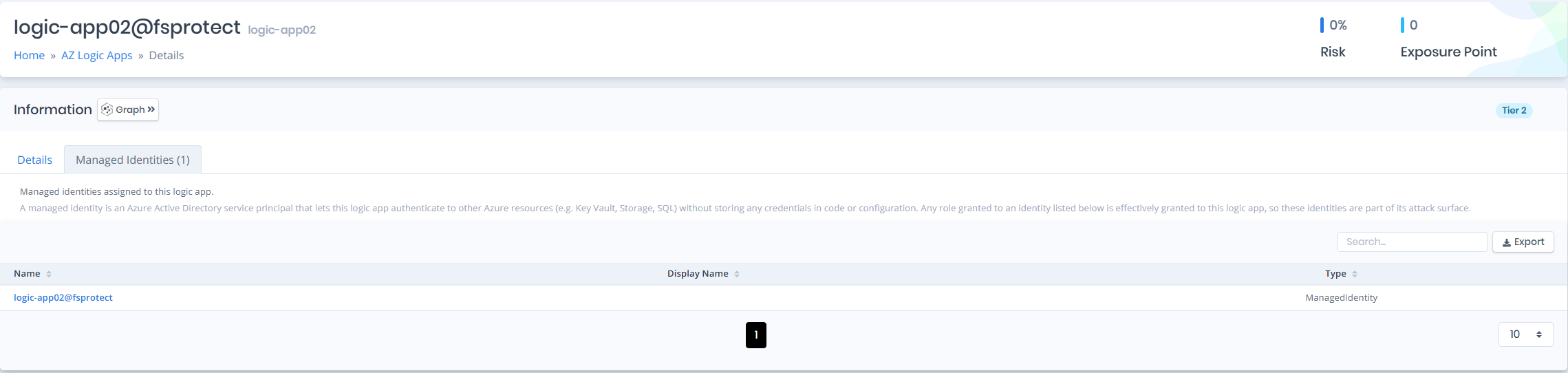

Managed Identities
The Managed Identities tab lists Azure Active Directory service principals (managed identities) assigned to the logic app. A managed identity lets the logic app authenticate to other Azure resources (e.g. Key Vault, Storage, SQL) without storing credentials in code or configuration. Any role granted to an identity listed here is effectively granted to this logic app, so these identities are part of its attack surface.
| Attribute | Description |
|---|---|
| Name | The display name of the managed identity with tenant suffix |
| Display Name | The display name of the service principal |
| Type | The service principal type (e.g., ManagedIdentity) |
Managed Identities
