Summary

The Summary page contains the statistics of the Credential Discovery Audit scan result. You can examine the results between scans with the timeline graph.

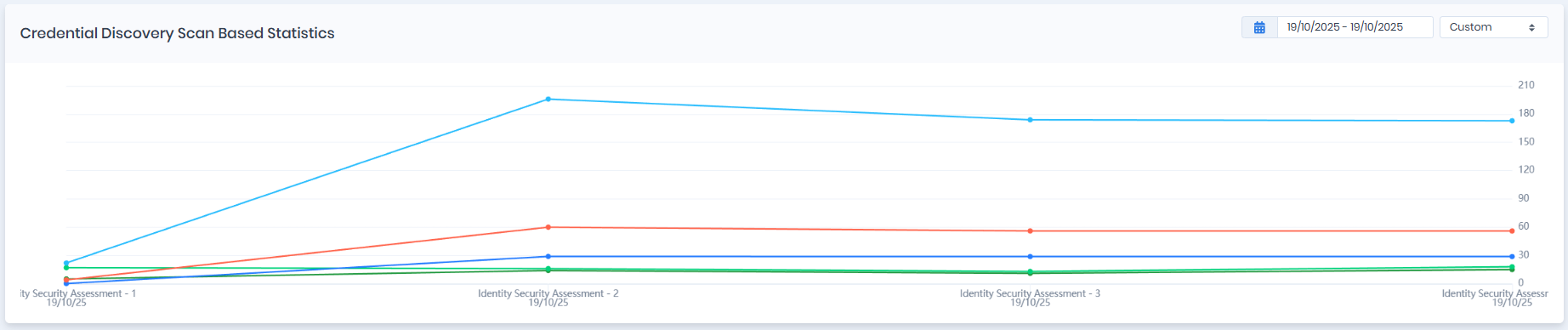

Credential Discovery Scan Based Statistics

Visualizes important data related to scan operations performed over a specific time period.

Credential Discovery Statistics Timeline

• Number of Accessed Machines: Indicates the number of machines scanned successfully.

• Total Machines: Indicates the number of all Online machines in the Active Directory.

• Number of Scanned Files: Indicates the number of files processed.

• Total Data Scanned (MB): Indicates the total amount of data processed in megabytes (MB).

• Total Matches Detected: Indicates the number of matches that meet the defined regexes.

Charts

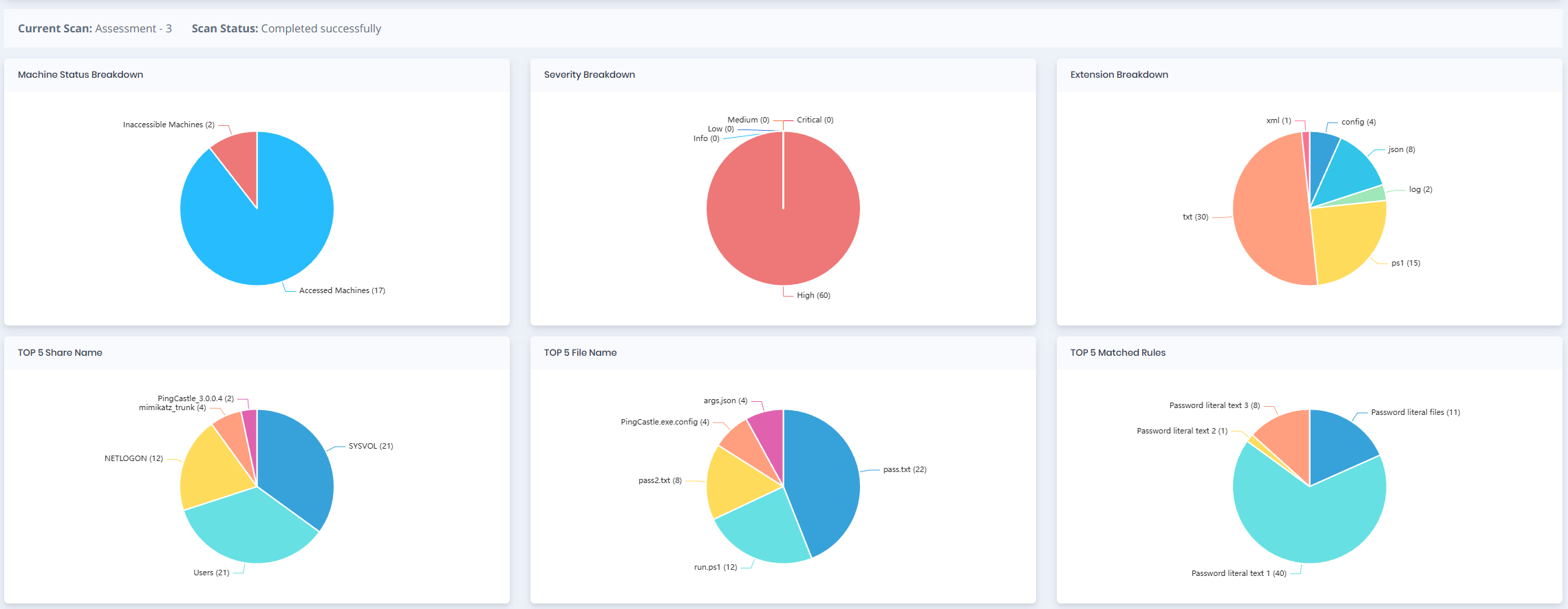

The pie charts show the Credential Discovery scan results for the Selected Scan. The Scan Status reflects the current lifecycle of a scan. While the scanner is actively enumerating, the status is Running. Once execution ends, the status switches to one of two terminal values: Completed successfully, indicating that scanner finished without an error; or Completed with errors, indicating that the scan reached completion but encountered at least one error that did not halt the overall process.

Credential Discovery Results

Badge	Description
Machine Status Breakdown	Shows the ratio of accessed and inaccessible machines.
Severity Breakdown	Shows the breakdown of matches according to regex severity.
Extension Breakdown	Shows the breakdown of file extensions with matches.
Top 5 Share Name	Shows the top 5 most detected share names.
Top 5 File Name	Shows the top 5 most detected file names.
Top 5 Matched Rules	Shows the 5 most matching regex rules.
